Kits | AxisOS™

Turnkey Deployment

AxisOS Micro-Enterprise Hardware Kit

FLAGSHIP HARDWARE PACK

The complete, physical micro-enterprise infrastructure in a single deployment crate. Every component is bench-tested, pre-flashed with signed AxisOS Golden Edition firmware, and mapped for plug-and-play mesh coordination.

Turnkey Hardware Bill of Materials

Designed to stand up the full Triad architecture out of the box with zero setup headache. Just plug them in:

▲ 1× Raspberry Pi 4 Model B: Primary compute & core node. Hosts Agent Zero supervision, local comms switchboard, and storage subsystem.
◆ 1× Raspberry Pi Zero: Compact gateway & ingress router. Provides low-power edge filtering, remote comms relay, and hardware watchdog.
■ 5× Raspberry Pi Pico (w/ 2 RP2040 / RP2350): High-efficiency dual-core microcontrollers running bare-metal Lite nodes for sensor polling and physical I/O.
● 2× ESP32 Microcontrollers: Dual-core wireless/BLE edge telemetry nodes for wireless mesh coverage and out-of-band monitoring.

☎ 24/7 DEDICATED TECHNICIAN HOTLINE

Every kit ships with an assigned, dedicated technician and a 24-hour direct contact number. If your dedicated technician is ever changed, you will be notified proactively in advance.

PRICING

Available Upon Request

Pegged dynamically to hardware spot market value

Request Kit Quote →

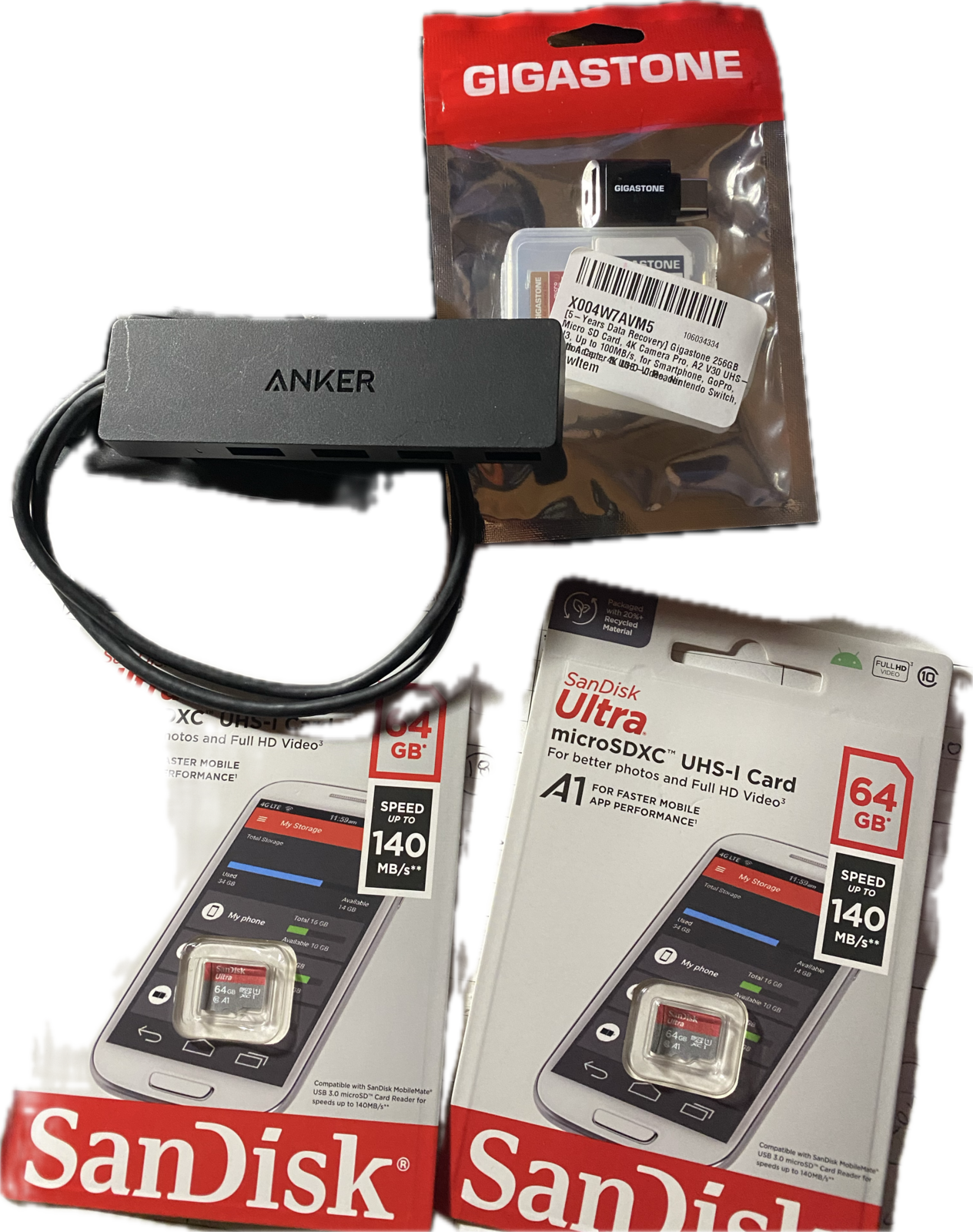

BENCH-TESTED & SEALED PACKAGING

Industrial SanDisk storage, Anker high-speed bus distribution, pre-flashed signed firmware, and 100% operator sovereignty.

⚙

Pre-Configured & Tested

No burning ISOs or troubleshooting kernel panics. Every device in the kit is flashed, burned-in, and verified before leaving the bench. Plug it in and it communicates immediately.

📡

Full Triad Topology

Compute, telemetry, and distributed intelligence running in unison. The Pi 4 orchestrates Zero and the local server, the Zero provides routing, while Picos and ESP32s hold the physical perimeter.

🛡

Dedicated Human Support

No chat bots or ticket queues. A dedicated technician with a direct telephone line is assigned to your deployment 24/7. Continuous coverage with advance notice of personnel changes.

Physical Hardware Specification

Ground Truth: The Hardware Nodes

ACTIVE OPERATIONAL SILICON

Every node in the AxisOS architecture is real silicon photographed directly on the workbench. No render simulations. No vaporware. Inspect the exact boards and enclosures below:

HISTORIC MILESTONE

● LIVE DEPLOYMENT · 192.168.1.35

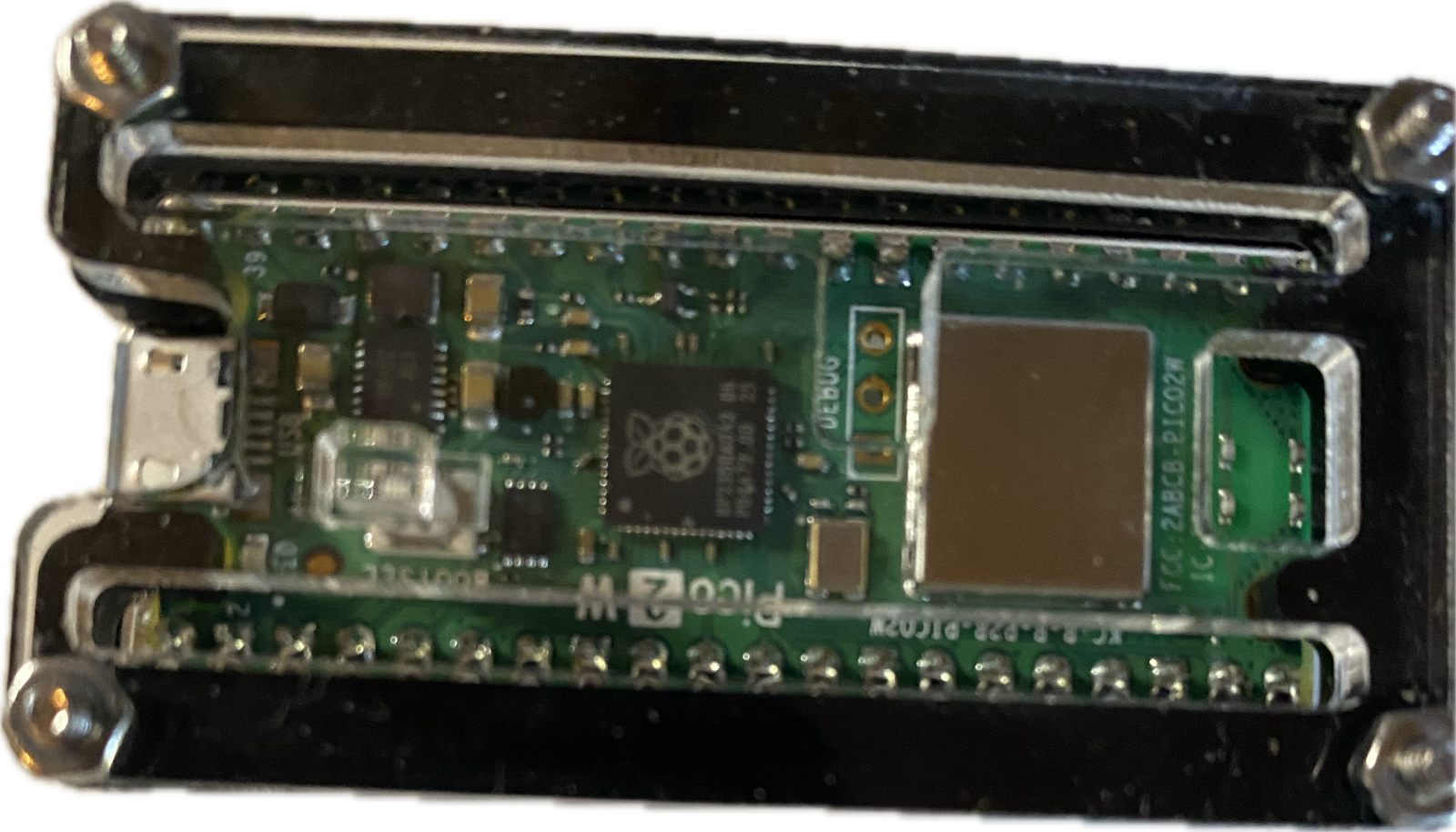

AxisOS Node 001 — Pico 2 W (RP2350)

Dual-core Arm Cortex-M33 running bare-metal C firmware. Features dedicated lwIP HTTP micro-daemon on port 80, UDP :50000 mesh discovery beacon, and syscall-first architecture. Enclosed in custom laser-cut black acrylic.

              iSerial: 713CC4CC9DEDE9F3 · Dual-Flashed


CORE SUPERVISOR NODE

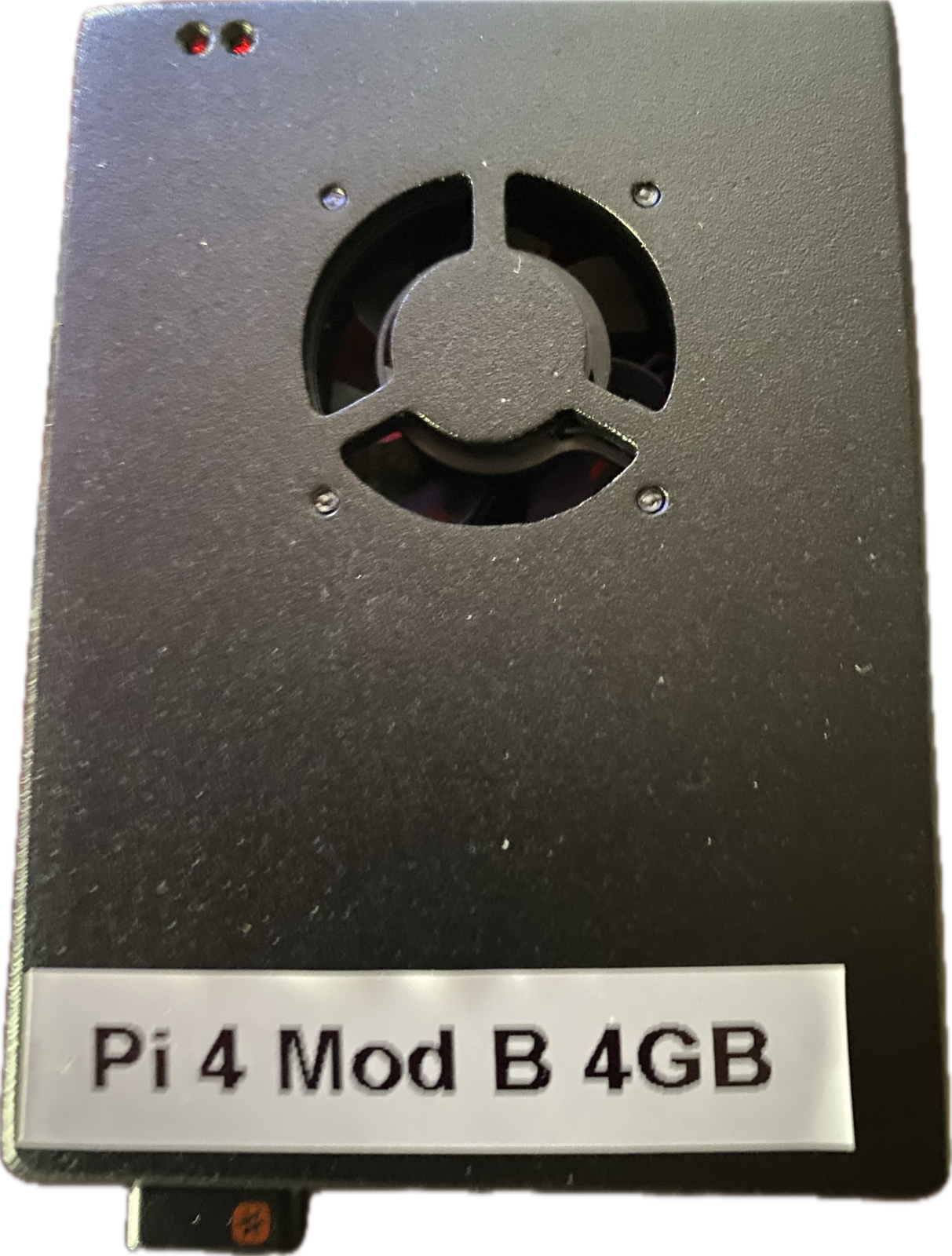

Raspberry Pi 4 Model B (4GB)

Rugged all-metal chassis with high-CFM active top fan. Hosts Agent Zero cognitive supervisor, primary local switchboard (:8080), neural cache, and RAID-5 storage shelf interface.

              Active Fan Cooling · Quad-Core A72 @ 1.8GHz


PRIMARY COMPUTE CLUSTER

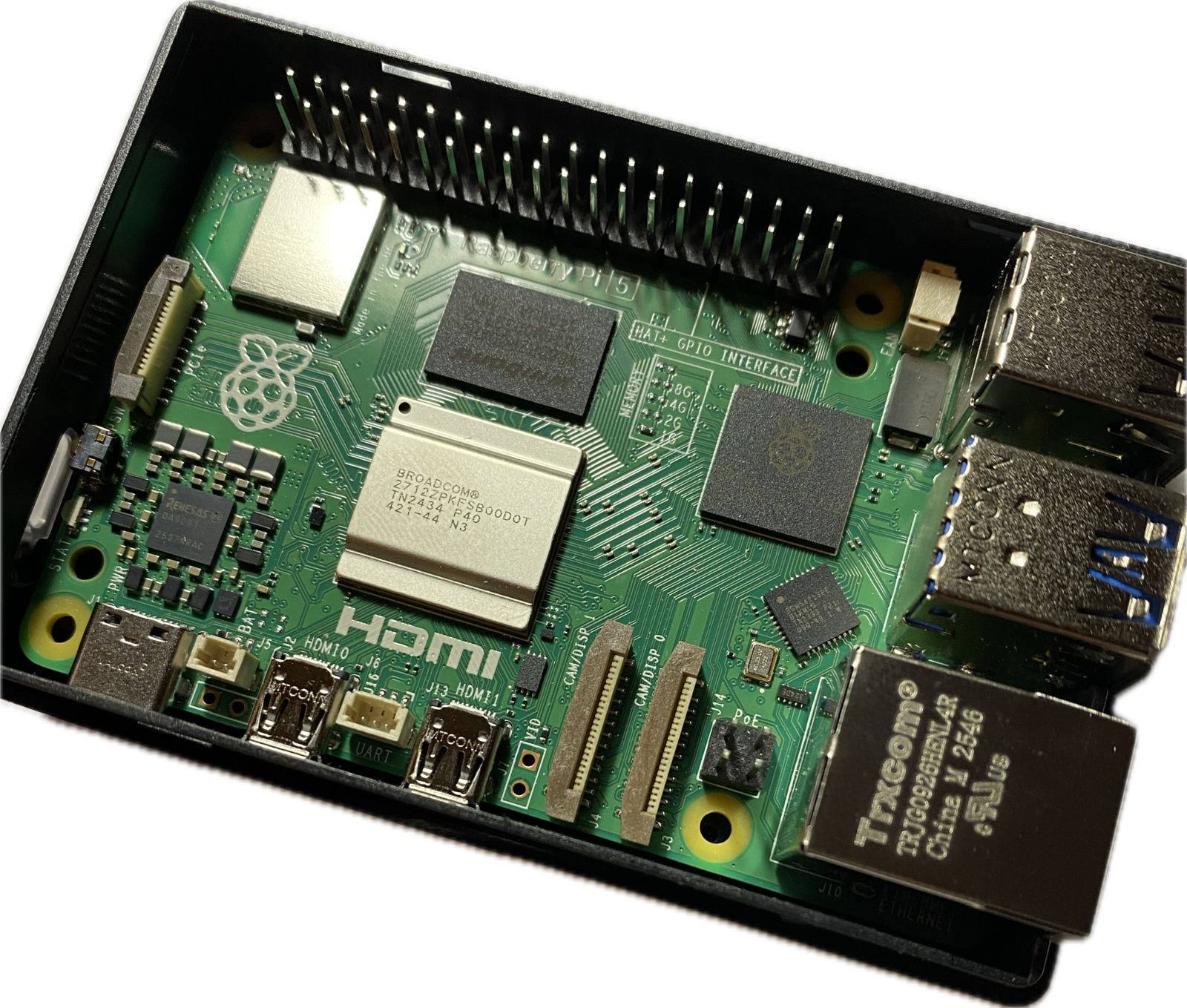

Raspberry Pi 5 Compute Node

Broadcom BCM2712 quad-core Cortex-A76 @ 2.4GHz with custom RP1 silicon for deterministic I/O. Delivers 3× throughput for multi-agent synthesis, localized embeddings, and heavy concurrent task pipelines.

              PCIe Gen 2 Ingress · LPDDR4X Memory


EDGE INGRESS GATEWAY

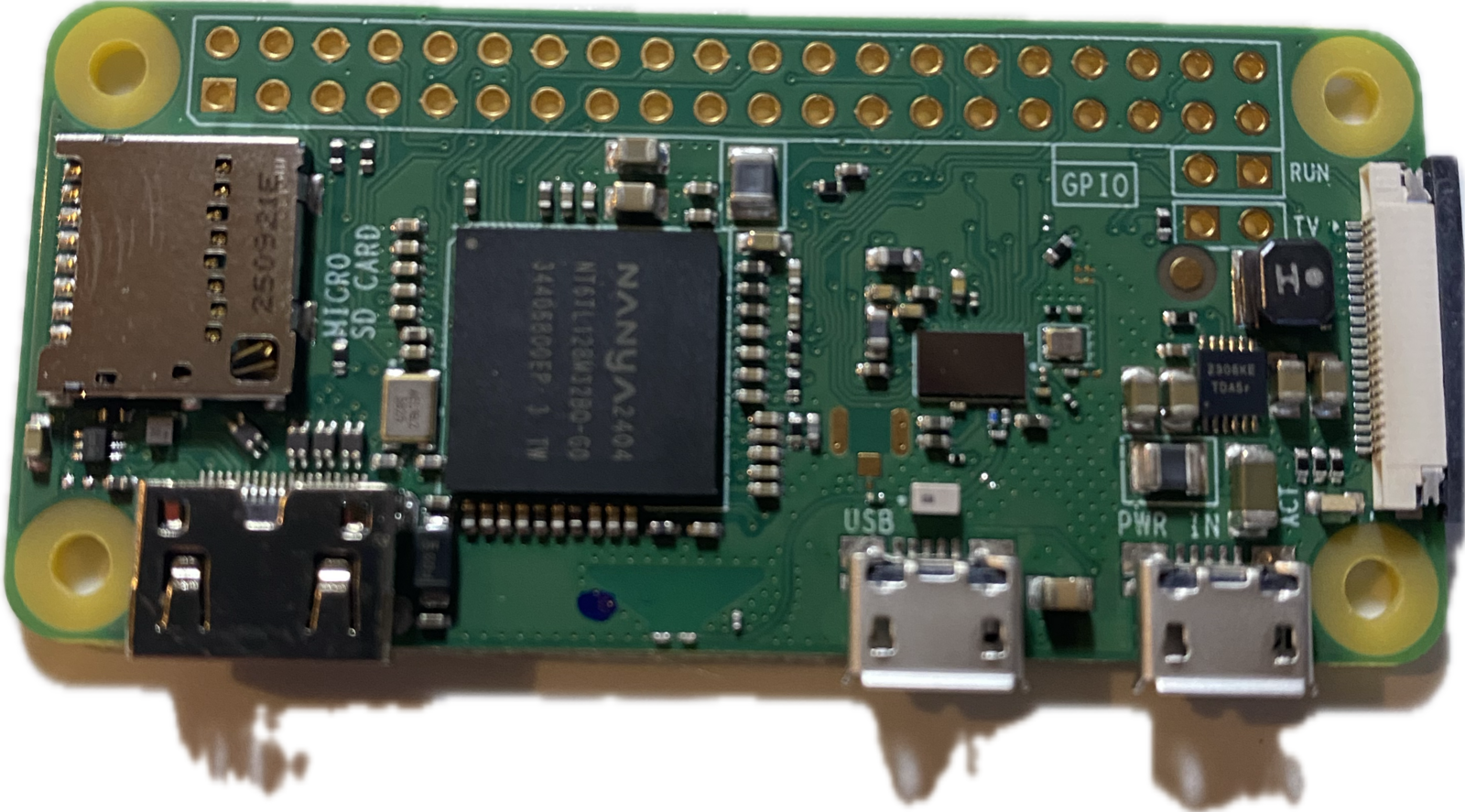

Raspberry Pi Zero 2 W

Micro-form-factor quad-core edge relay. Operates as an isolated physical firewall, WireGuard proxy gateway, and out-of-band watchdog to ensure continuous Triad uptime.

              Sub-1W Idle Power · SiP Packaging


OFF-GRID TELEMETRY

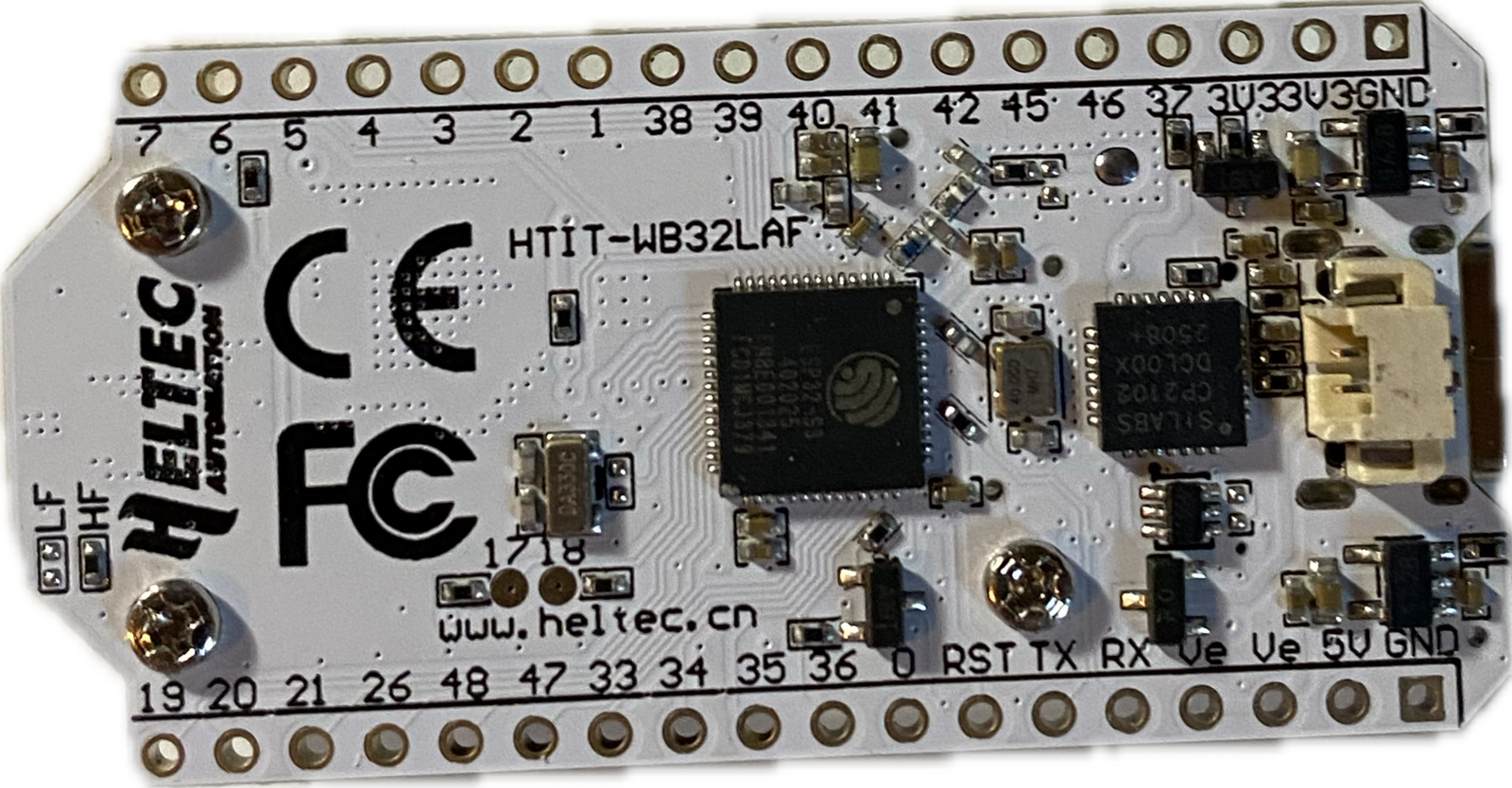

Heltec LoRa ESP32 Node

Sub-GHz long-range LoRa radio paired with an onboard OLED diagnostics display. Broadcasts air-gapped encrypted mesh packets up to 10+ miles without internet infrastructure.

              915MHz Radio · Dual-Core Xtensa · Integrated OLED


UNINTERRUPTIBLE POWER & E-PAPER

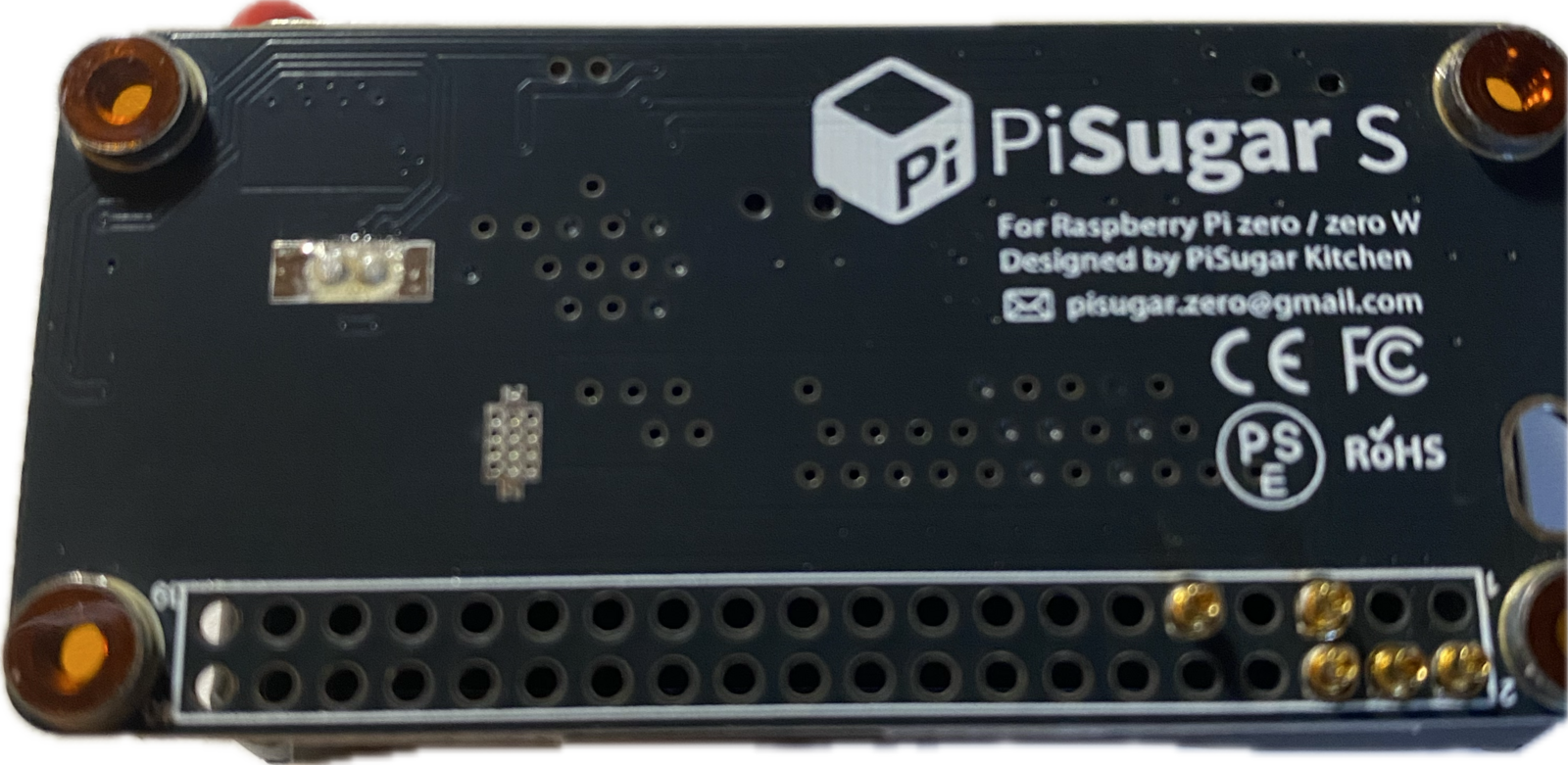

PiSugar S Power & e-Paper Modules

Precision I2C battery management module for brownout protection and mobile deployment, paired with zero-power reflective e-Paper HATs for perpetual air-gap status displays.

              I2C Telemetry · Clean Hardware Shutdown


Core Repositories

Open Source Build Packages

Flash Your Own Hardware

Prefer building your own nodes from bare boards? The complete AxisOS toolchain is open and modular. Each repository owns a distinct responsibility in the stack.

AxisOS-Firmware

The base firmware layer for AxisOS-compatible hardware. Operator-tuned defaults, zero-trust boot sequence, and deterministic bare-metal syscalls built in from first flash.

C Embedded Zero-Trust Boot

View on GitHub →

AxisOS_Flasher

The flash and provisioning tool for AxisOS deployments. Auto-detects connected microcontrollers and SBCs, validates cryptographic signatures, and writes clean in a single pass.

Python CLI Cross-Platform

View on GitHub →

AxisOS-Viewer-Suite

Operator-side tooling for viewing real-time system state, mesh topology, and audit logs. Terminal-native TUI. Built for high reliability across low-bandwidth serial and SSH lines.

Go TUI Operator Tools

View on GitHub →

How to Deploy

Start to running in four steps.

axisos — kit deploy

// step 1: clone firmware

$ git clone https://github.com/mcrusan/AxisOS-Firmware

// step 2: clone flasher

$ git clone https://github.com/mcrusan/AxisOS_Flasher

// step 3: flash your device

$ cd AxisOS_Flasher && python axisflash.py

// device: [FOUND] firmware: [SIGNED] flash: [OK]

// step 4: launch viewer

$ cd AxisOS-Viewer-Suite && ./axisview

// connected. mesh status: live.

axis>

Operator Checklist

AxisOS kits assume you’re starting from physical silicon, not cloud virtual machines. Before flashing:

✓ Compatible Hardware:
Raspberry Pi 4, Pi Zero, Raspberry Pi Pico / Pico 2, or ESP32-WROOM/S3.

✓ Clean Host System:
Python 3.10+ with standard library only. No heavy frameworks needed.

✓ Direct Terminal Access:
USB-to-UART serial cable or raw virtual console (TTY1) access.

✓ Operator Mindset:
You read the logs. You own the cryptographic chain. That is the contract.
